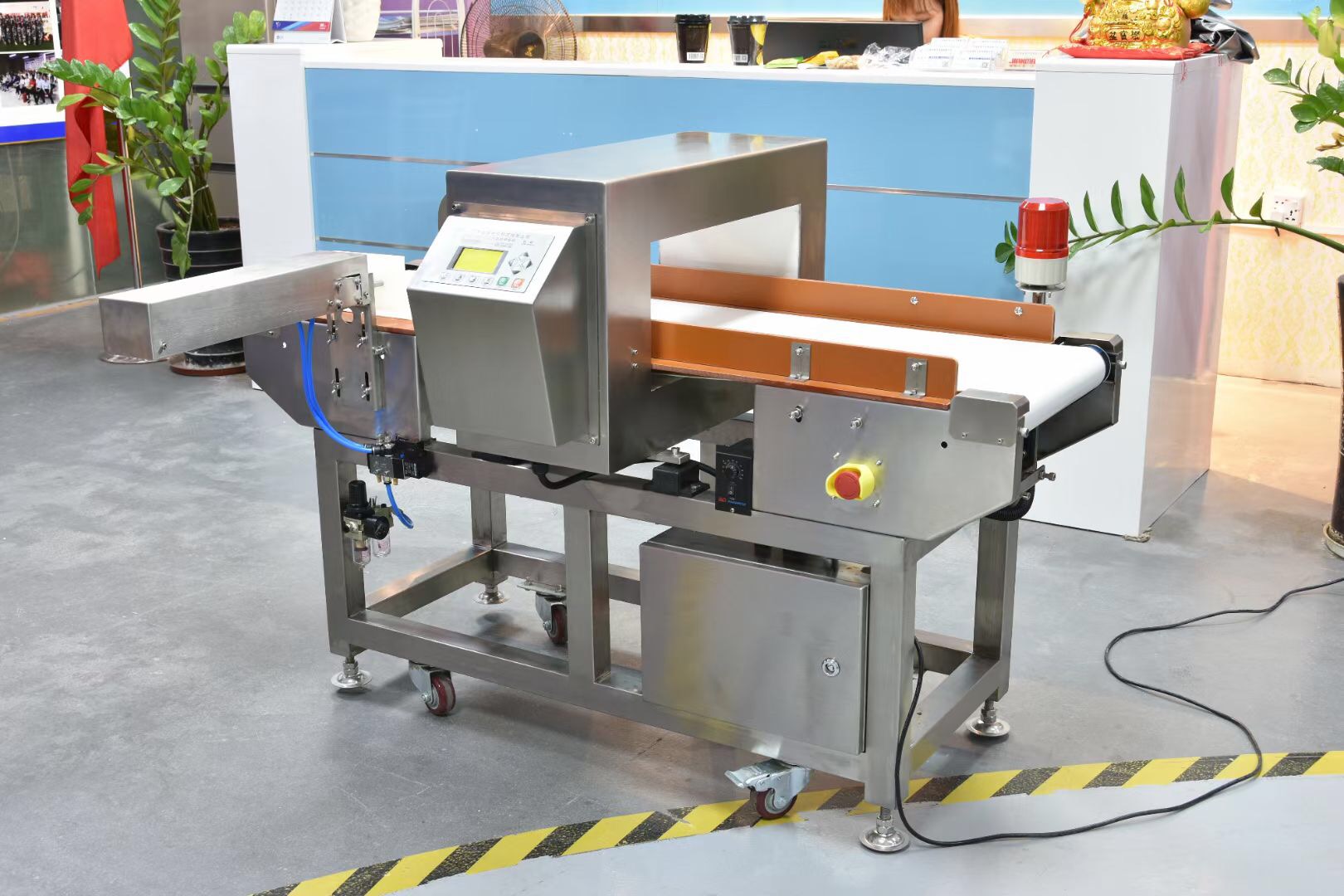

Food Metal Detector Digital Dual Frequency Detection
Applicable industry:
Detection of metal foreign bodies in various textiles, aquatic products, toys, food (food additives, condiments), medicines, health care products, cosmetics and other industries, such as iron, copper, aluminum, stainless steel and other metal particles. Bulk can be detected , Bagged, bottled, boxed.
Performance characteristics:
◆ The machine is made of all stainless steel 304, and the conveyor belt adopts a white non-toxic food-grade special sanitary conveyor belt that meets the US "FDA" standard;
◆ The digital machine is brand new and complete with memory function. Can store 12 kinds of product detection parameters;
◆ Dual signal detection circuit merging technology, LCD display, Chinese and English menu screen, easy operation;
◆ Using German professional detection technology, balanced principle, high detection accuracy, work Love can be more stable and reliable.
◆ The shortcomings of the complementary analog machine, the combination of DSP and single-chip microcomputer performs data sampling and data processing on the detection signal, which improves the detection effect.
◆ Brand-new circuit design, with extremely high detection sensitivity, phase adjustment technology, capable of product adjustment, effectively suppressing product effects;
◆ It can detect various materials such as iron, non-ferrous, stainless steel, copper, aluminum and non-ferrous metals.
◆ With self-learning ability, a wide range of detection materials, super anti-interference and anti-vibration capabilities.
◆ The motor speed is 26 meters per minute and supports 24 hours of uninterrupted work.
◆ Good waterproof performance, adapt to humidity, cold storage and other environments.
Parameters:
| Detection Width | 40cm (Can be customized) |
| Detection Height | 12cm,15cm,20cm(Can be customized) |
| Conveyor length | 140cm (Can be customized) |
| Sensitivity | FE φ 1.0-2.0mm, CUφ2.0-3.0mm, SUSφ2.5-3.5mm |
| Maximum load | 15kg |
| Conveying speed | about 24m/min |
| Weight | 250kg |
| Alarm Methods | buzzer, LED sound and light alarm, and automatic shutdown. |
| Material | 304 Stainless Steel |
| Conveyor belt height from the ground | 70cm |
| Dimensions (L x W x H mm) | 1400 × 840 × 1005 |
| | Suitable for wet and dry products, suitable for products with high product effects such as moisture, sugar, salt, etc., suitable for use with higher sensitivity requirements |
